Scan-to-BIM - The Complete Guide

A Complete Guide for Architects and Engineers

Table of Contents

  1. Introduction
  2. What Is Scan-to-BIM
  3. Why Scan-to-BIM Matters
  4. The Technology Behind Scan-to-BIM
  5. Beyond the Marketing: Why Expertise Matters
  6. Benefits for Architects
  7. Benefits for Engineers
  8. The Scan-to-BIM Process
  9. Applications Across Project Types
  10. Proper Project Specification
  11. Validation and Quality Control
  12. Choosing the Right Provider
  13. Getting Started with Scan-to-BIM
  14. Conclusion
  15. Key Terms Glossary
  16. FAQ
  17. Additional Resources



About This Guide

This guide is authored by Spatial Reality Solutions, led by an ASPRS Certified Mapping Scientist - Lidar with a Permit to Consult under the Association of Professional Engineers and Geoscientists of Saskatchewan (APEGS). With deep expertise in geomatics, terrestrial laser scanning, and reality capture technologies, SRS specializes in delivering accurate, reliable scan-to-BIM solutions that meet rigorous professional standards for architecture, engineering, and construction projects.

Key Takeaways

  • Scan-to-BIM converts 3D laser scan data into intelligent BIM models for accurate existing conditions documentation
  • Marketing claims of "push-button accuracy" miss the mark - reliable results require geomatics expertise, proper control surveys, and professional validation
  • Licensed professionals with ASPRS certification and engineering permits ensure projects meet accuracy standards and avoid costly errors
  • Proper specification is critical - understanding Level of Accuracy (LoA), Level of Detail (LoD), and validation requirements prevents project failures
  • ROI comes from risk reduction - accurate data eliminates rework, reduces change orders, and accelerates timelines

The architecture, engineering, and construction industries are experiencing a digital transformation reshaping how we approach building design and construction. At the forefront of this evolution is scan-to-BIM technology, revolutionizing how professionals capture, analyze, and utilize existing building data to create more accurate, efficient, and cost-effective projects.

What Is Scan-to-BIM

Scan-to-BIM is the process of capturing highly accurate 3D spatial data of existing structures using laser scanning technology and converting that data into intelligent BIM models. This creates detailed digital representations that feed into digital twin workflows, providing the geometric and semantic information foundation necessary for comprehensive asset lifecycle management.

Unlike traditional surveying methods that capture individual points and measurements, 3D laser scanning generates comprehensive spatial data representing every visible surface of a structure. When integrated with BIM workflows, this data becomes the foundation for accurate design, clash detection, quantity takeoffs, and project planning.

gray and yellow measures

Why Scan-to-BIM Matters

The construction industry loses billions of dollars annually due to rework, delays, and design errors, many of which stem from inaccurate or incomplete existing conditions data. Traditional measuring methods often fall short when dealing with complex geometries, hard-to-reach areas, or the level of detail required for design and engineering coordination.

3D laser scanning (also known as lidar scanning) addresses these challenges by providing comprehensive, accurate data. This reduces risk, minimizes rework, accelerates project timelines, and delivers better outcomes for all stakeholders.

The Technology Behind Scan-to-BIM

Modern terrestrial laser scanners determine distances with exceptional accuracy using methods such as time-of-flight, phase-shift, or waveform-digitizing techniques. The scanning process involves multiple positions to ensure complete coverage, and advanced software registers these individual scans into a unified dataset representing the space.

Modern scanners also capture high-resolution photography that can be mapped onto point clouds for photorealistic visualization and enhanced interpretation capabilities.

Once captured, specialized software processes the point cloud data and converts it into BIM objects. This involves identifying building elements like walls, columns, beams, and mechanical systems, then creating parametric objects that maintain both geometric accuracy and semantic information.

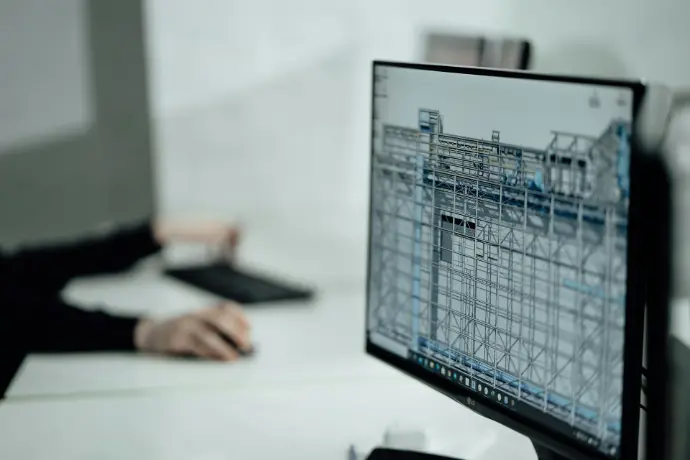

person using black laptop computer

Beyond the Marketing: Why Expertise Matters

The geospatial technology industry has witnessed an explosion of user-friendly scanning hardware and software solutions marketed with compelling promises: "anyone can do this," "hit the red button and walk around for millimeter accuracy," or "plug-and-play scanning solutions." While these marketing messages highlight the accessibility of modern technology, they fundamentally misunderstand what it takes to deliver truly accurate, reliable results.

The Reality of Accuracy Claims

Modern scanning instruments are capable of exceptional precision under ideal conditions, but achieving and maintaining this accuracy in real-world projects requires deep understanding of geomatics principles, error sources, and quality control procedures. Factors such as atmospheric conditions, target surface properties, scanning geometry, and instrument calibration all impact final accuracy. Simplified workflows promising effortless results overlook these considerations.

Professional understanding distinguishes between instrument precision and project accuracy. True project accuracy requires proper control surveys, error analysis, and validation procedures that align with established standards such as those published by the American Society for Photogrammetry and Remote Sensing (ASPRS), including the new three-dimensional positional accuracy standards.

The Geomatics Foundation

Successful scan-to-BIM projects rely on fundamental geomatics principles that extend far beyond equipment operation. These include:

Establishing accurate project control through GNSS observations, traditional surveying methods, or integration with existing control networks ensures that scan data can be properly georeferenced and integrated with other project datasets. This foundation is critical for projects requiring coordination with architectural drawings, engineering plans, or GIS databases.

Understanding coordinate systems, datum transformations, scale factors, and projection parameters is essential for accurate data integration. Projects often require transformation between multiple coordinate systems, and improper handling of these transformations can introduce significant errors that compromise the entire dataset.

Understanding and managing error sources throughout the data collection and processing workflow. This includes instrument calibration verification, systematic error identification, and statistical analysis of measurement uncertainty. Licensed professionals apply these principles systematically rather than relying on manufacturer specifications alone.

Implementing systematic quality control procedures that validate accuracy throughout the project workflow. This includes independent check measurements, statistical analysis of point cloud accuracy, and validation against established control points or known dimensions.

Adhering to professional standards ensures that deliverables meet industry expectations and project requirements. These standards provide objective criteria for accuracy assessment and quality validation.

man in orange jacket and black helmet riding red bicycle on brown dirt road during daytime

The Integration Challenge

Effective scan-to-BIM requires understanding how 3D scanning fits within the broader context of surveying and geospatial services. Projects often require integration of multiple data sources including topographic surveys, as-built documentation, aerial imagery, and existing drawings. This requires comprehensive coordinate system management, data fusion techniques, and understanding of how different technologies complement each other.

Professional Judgment and Experience

While automated software tools have improved significantly, they cannot replace professional judgment required to make critical decisions about data collection strategies, processing workflows, and quality validation. Licensed professionals recognize when automated processes produce reliable results and when manual intervention is required.

This expertise becomes particularly crucial when dealing with complex geometries, challenging site conditions, or demanding accuracy requirements. The difference between adequate results and professional-quality deliverables lies in the subtle decisions and quality control measures experienced practitioners apply routinely.

Benefits for Architects

Architects working on renovation, restoration, or addition projects face unique challenges when existing building documentation is incomplete, outdated, or inaccurate. Scan-to-BIM provides several critical advantages:

Laser scanning captures true geometry of existing structures, including settling, deformation, and as-built conditions that differ from original drawings, ensuring new designs fit properly with existing elements .

Precise existing conditions data enables confident design decisions, knowing new elements will integrate seamlessly with existing structures, reducing costly field conflicts and design changes during construction.

Laser scanning provides detailed documentation that preserves architectural details while enabling sensitive restoration and adaptation work, capturing intricate details that would be time-consuming and expensive to document traditionally.

3D point clouds and BIM models provide powerful visualization tools for client presentations, helping stakeholders understand existing conditions and proposed changes more clearly than traditional 2D drawings.

An architect working on a draft with a pencil and ruler

Benefits for Engineers

Engineers across all disciplines benefit significantly from accurate existing conditions data:

Can assess existing structural systems more accurately, identifying load-bearing elements, connection details, and structural deficiencies that may not be apparent in original drawings. Information that is crucial for renovation projects, seismic upgrades, and structural assessments

Face particular challenges in renovation projects where existing mechanical, electrical, and plumbing systems must be coordinated with new installations. Laser scanning captures exact locations of existing services, pipe runs, ductwork, and equipment, enabling accurate coordination and clash detection.

Working on site development projects can use integrated topographic and building data to understand relationships between structures and surrounding terrain, drainage patterns, and site constraints.

person writing on white paper

The Scan-to-BIM Process

The integration of laser scanning with BIM follows a structured workflow that ensures data quality and project success:

Phase 1: Planning and Preparation

Successful scan-to-BIM projects begin with careful planning: defining project objectives, establishing accuracy requirements, determining both Level of Accuracy (LoA) and Level of Detail (LoD) needed for the BIM model, identifying areas to be scanned, and planning the scanning approach. Site access, safety considerations, and scanning logistics are also planned during this phase.

Phase 2: Data Acquisition

The scanning process requires strategic positioning to ensure complete coverage of the project area. Proper planning ensures optimal data quality and minimal gaps. Imagery is also captured and mapped onto point clouds for photorealistic visualization and enhanced interpretation capabilities.

Phase 3: Data Processing and Registration

Raw scan data from multiple positions must be processed and registered. This involves identifying common points between overlapping scans and using sophisticated algorithms to create seamless point cloud models. Following registration, data must be translated into the appropriate coordinate system for the project. Whether local site coordinate system, geographic coordinate system, or integration with existing project control networks.

Phase 4: Point Cloud to BIM Conversion

This critical phase involves interpreting point cloud data and creating intelligent BIM objects. Experienced technologists identify building elements and create parametric objects maintaining both geometric accuracy and semantic information. Level of detail in this conversion depends on project requirements and intended use of the BIM model.

Phase 5: Quality Control and Validation

The final BIM model undergoes rigorous quality control to ensure accuracy and completeness, including checking dimensions against original point clouds, validating object classifications, and ensuring models meet project specifications.

Applications Across Project Types

These projects present the greatest challenges and benefits for scan-to-BIM. Accurate existing conditions data enables better design decisions, reduces field conflicts, and improves project outcomes.

Laser scanning provides detailed documentation of historic structures, capturing architectural details and building conditions that inform restoration approaches while preserving digital records for future generations.

Complex industrial facilities with extensive piping, equipment, and structural systems benefit enormously from accurate 3D documentation supporting maintenance planning, expansion projects, and facility management activities.

Transportation infrastructure, utilities, and civil works projects integrate building and site data to understand complex interactions between structures and surrounding infrastructure.


Proper Project Specification

One of the most critical factors in scan-to-BIM project success is proper specification at the outset. Understanding the distinction between measured accuracy (accuracy of captured point clouds) and represented accuracy (how accurately data is translated into BIM models) is essential for setting realistic expectations and ensuring deliverables meet project needs.

Industry frameworks such as BIMForum and USIBD's "Procuring Reality Capture Services" guide provide comprehensive methodologies for specifying reality capture projects. These frameworks emphasize identifying use cases before beginning data collection, as different applications require different levels of accuracy and detail.

For example, a BIM model for facilities management may require different represented accuracy than one intended for structural engineering analysis. Without proper specification aligned with intended use, projects risk collecting insufficient data or over-specifying requirements that unnecessarily increase costs.

Validation and Quality Control

Professional scan-to-BIM services should include validation procedures ensuring accuracy and reliability. The USIBD LOA Specification outlines three validation methods ranging from basic overlap checking to independent verification measurements. The appropriate validation method depends on project risk tolerance and accuracy requirements.

Understanding these validation frameworks helps clients evaluate provider capabilities and ensures quality control measures align with project needs. Providers who can articulate their validation procedures and demonstrate adherence to industry standards are more likely to deliver reliable results.

person holding pencil near laptop computer

Choosing the Right Provider

The success of scan-to-BIM projects depends heavily on the expertise and experience of the service provider. Key considerations include:

Technical Expertise and Geomatics Background:  Look for providers with extensive experience in both laser scanning and BIM modeling, but more importantly, seek those with formal geomatics or surveying education and professional licensing. Integration of these technologies requires specialized knowledge going far beyond equipment operation. A Permit to Practice/Consult under provincial/state engineering associations and professional certifications such as ASPRS Certified Mapping Scientist indicate depth of technical knowledge necessary for reliable results. Despite marketing claims that "anyone can do scanning," consistent, accurate results require deep understanding of measurement science, error analysis, and geospatial data integration.

Equipment and Technology:  With the vast array of scanning instruments available today, selecting appropriate technology for specific project requirements can be overwhelming for non-experts. Providers should use current, well-maintained scanning equipment and industry-standard BIM software. However, understanding which specific scanner technology is appropriate for different applications requires deep expertise in terrestrial laser scanning principles. Without this background knowledge, there's significant risk of using inappropriate technology that fails to meet accuracy requirements, potentially compromising entire projects.

Industry Experience:  Different project types present unique challenges. Providers with relevant industry experience understand specific requirements and challenges associated with your project type.

Quality Control Processes:  Established quality control procedures ensure final deliverables meet project requirements and accuracy specifications.

Getting Started with Scan-to-BIM

Before beginning a scan-to-BIM project, clearly define your objectives and requirements including project scope, accuracy needs, and budget parameters. Engage experienced providers early in planning to establish realistic expectations and align data collection strategies with project goals. Consider starting with a pilot project to evaluate how the technology integrates with your existing workflows and delivers value for your specific applications.

Conclusion

Scan-to-BIM represents a critical component of the broader digital transformation occurring in construction and engineering. As outlined in the  NRC's BIM Maturity at Scale roadmap, the industry is moving toward comprehensive digital workflows that integrate multiple technologies and data sources to improve project outcomes and reduce costly errors.

For architects and engineers, adopting scan-to-BIM workflows means moving from assumptions and approximations to data-driven design decisions. This shift requires investment in new processes and partnerships, but the benefits - reduced risk, improved quality, and enhanced client satisfaction make it a compelling proposition.

As the technology continues to evolve, scan-to-BIM will become increasingly standard practice for renovation, restoration, and complex new construction projects. Organizations that embrace this technology now will gain competitive advantages and be better positioned for future success.

The key to successful implementation lies in understanding the technology's capabilities and limitations, choosing experienced providers, and developing internal processes that maximize the value of 3D data throughout the project lifecycle.

Ready to discuss your scan-to-BIM project? Contact Spatial Reality Solutions for a consultation on your reality capture needs. With ASPRS certification, provincial engineering permits, and deep geomatics expertise, SRS delivers the accuracy and reliability your project demands.

high-rise building in city during daytime

Key Terms

Scan-to-BIM: The process of converting 3D laser scan point cloud data into intelligent Building Information Models (BIM) containing parametric objects with geometric and semantic information.

Level of Accuracy (LoA): A standardized specification defined by USIBD that establishes required measurement accuracy for different elements within a reality capture project, ranging from LOA 10 (low accuracy) to LOA 50 (high accuracy).

Level of Development (LOD): A methodology defined by BIMForum for specifying the accuracy and reliability of elements in a design BIM, indicating how much detail and information is included in model elements.

Measured Accuracy: The accuracy of data as collected in the field, typically referring to the registered point cloud before conversion to other formats.

Represented Accuracy: The accuracy with which measured data is translated into final deliverables such as 2D drawings or 3D BIM models.

Point Cloud: A collection of millions of 3D data points captured during laser scanning that represents the spatial geometry of surfaces, often including color (RGB) and intensity information.

Control Survey: The establishment of accurate reference points with known coordinates that serve as the foundation for georeferencing scan data and ensuring positional accuracy.

Coordinate System Transformation: The mathematical process of converting spatial data from one coordinate system to another, including handling datum differences, scale factors, and projection parameters.

Terrestrial Laser Scanning (TLS): Ground-based laser scanning using tripod-mounted instruments that capture millions of precise measurements to create detailed 3D representations of structures and environments.

ASPRS Standards: Professional accuracy standards published by the American Society for Photogrammetry and Remote Sensing that define methods for assessing and reporting positional accuracy of geospatial data, including the three-dimensional positional accuracy standard.

Registration: The process of aligning multiple individual laser scans into a unified coordinate system by identifying common points between overlapping scan positions.

Validation: Quality control procedures used to verify that scan data and BIM models meet specified accuracy requirements.

Teacher pointing at students with raised hands

Frequently Asked Questions About Scan-to-BIM

Accuracy varies based on project requirements and technology used. Modern terrestrial laser scanners can achieve measurement accuracy of ±2-5mm at typical scanning distances. However, represented accuracy in the final BIM model depends on modeling decisions and may range from ±10mm for high-accuracy heritage documentation to ±50mm for general facilities management applications. The appropriate accuracy level should be specified based on intended use case and aligned with USIBD LOA and ASPRS standards.

Project duration depends on building size, complexity, and required level of detail. Field scanning for a simple 5,000 sq ft building might take 4-8 hours, while a complex industrial facility could require several days. Point cloud processing typically takes an equal amount of time as the data collection, and BIM model creation can range from one week for basic models to several weeks for highly detailed models with extensive MEP systems. Total timeline from mobilization to final deliverables typically ranges from 2-6 weeks.

Level of Accuracy (LoA) refers to how accurately measurements are captured and represented, focusing on dimensional precision and geometric fidelity. Level of Detail (LoD) refers to how much information and detail is included in BIM model elements, ranging from simple placeholders to fully detailed parametric objects. A project might have high LoA (very accurate measurements) but low LoD (simple geometric representation), or vice versa, depending on project requirements.

While not legally required for all applications, engaging licensed professionals with proper credentials significantly reduces project risk. Licensed professionals with permits to practice/consult under provincial or state engineering associations, along with certifications like ASPRS Certified Mapping Scientist, possess the geomatics expertise necessary to ensure accuracy, proper control surveys, coordinate system management, and quality validation. This expertise becomes critical for projects with demanding accuracy requirements, complex coordination needs, or where errors could result in costly construction issues.

Costs vary widely based on project scope, size, complexity, required accuracy level, and level of detail. Factors affecting cost include building square footage, number of floors, complexity of systems (especially MEP), accessibility challenges, and validation requirements. Simple projects might start around $5,000-10,000, while complex industrial facilities can exceed $50,000-100,000. The investment should be evaluated against the cost of potential errors from inaccurate existing conditions data. For most projects, scan-to-BIM costs represent a small fraction of typical change order expenses resulting from poor documentation.

Mobile scanning systems (including SLAM-based backpack scanners and vehicle-mounted systems) offer excellent coverage efficiency but typically achieve lower absolute accuracy than static terrestrial laser scanners. Mobile systems are well-suited for large-area documentation, corridor mapping, and applications where ±20-50mm accuracy is acceptable. Terrestrial scanners remain the preferred choice for projects requiring ±5-10mm accuracy or less. Many projects benefit from hybrid approaches using both technologies strategically, though this requires geomatics expertise to properly integrate datasets and manage error budgets.

Common deliverables include point clouds in formats like E57, RCP/RCS (Autodesk), LAS/LAZ, and PTS; BIM models in Revit (RVT) or IFC format; 2D CAD drawings in DWG/DXF format; and sometimes mesh models in OBJ or FBX format. The specific formats should be specified based on your software environment and intended workflows. Registered point clouds are often retained as reference data that can be revisited if questions arise during design or construction.

Look for providers who follow established validation procedures outlined in the USIBD LOA Specification. Request documentation of their quality control process, including how they establish control, manage coordinate systems, and validate final deliverables. Providers should be able to articulate their measurement accuracy, explain their validation methodology (Method A, B, or C), and provide accuracy reports meeting requirements outlined in the ASPRS Positional Accuracy Standards for Digital Geospatial Data Edition 2, Version 2. Professional credentials (ASPRS certification, engineering permits) indicate formal training in measurement science and quality control. Ask for references from similar project types and request examples of their validation documentation from past projects.

Essential information includes project objectives and intended use cases, required deliverables and formats, accuracy requirements, building size and complexity, areas to be scanned (marked up floor plans), schedule constraints, any existing drawings or models, site access restrictions, and budget parameters. Early consultation with your scan-to-BIM provider helps refine these requirements and ensures the data collection plan aligns with project goals. Providing existing documentation, even if outdated or incomplete, helps providers plan more effectively.

Additional Resources

For those interested in learning more about reality capture and scan-to-BIM:

Industry Standards and Guides:

Related Articles:

These resources provide valuable context for understanding the technical foundations and professional standards that underpin successful scan-to-BIM implementation.
